PVC Ceiling Panel Advantages:
1. Light weight,good tenacity, high rigidity
2. Fireproof and flame retardant
3. Good insulation
4. No sopping, no deformation
5. Easily to processed
6. Good plasticity, being an excellent thermoform material
7. Sub-light surface and elegant vision
8. Anti-chemical corrosion
9. Suitable to silk screen printing
10. With imported dyes, unfading and anti-aging
PVC Ceiling Panel Making Machine Technical Data:
Extruder | Product width | Output | Power of main motor |
SJSZ51 | 200-400 mm | 150 kg/h | 22KW |
SJSZ65 | 200-600 mm | 220 kg/h | 37KW |
PVC Ceiling Panel Production Formula:
Raw Material | Percentage |
PVC resin powder | 27% |
CaCO3 | 54% |
PVC recycled material | 14.4% |
Stabilizer, PE Wax, Stearic acid, CPE, TiO2, ACR | 4.6% |
PVC Ceiling Panel Making Machine Parts:
No. | Name |
1 | Conical twin screw extruder (with automatic feeding machine) |
2 | Mould |
3 | Calibrating and water cooling table |
4 | Haul-off machine |
5 | Online laminating or stamping machine |
6 | Cutting machine |
7 | Bracket |
PVC Ceiling Panel Making Machine Parts in Details:

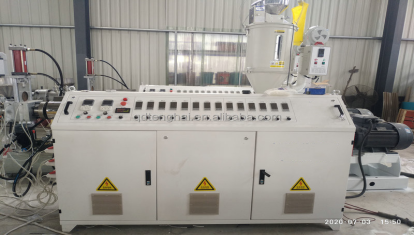

1. Conical twin screw extruder (with automatic feeding machine) (1) Motor: Siemens brand (2) Inverter: ABB brand (5) PLC: Siemens brand (6) Heating method: Cast aluminum heating |  |

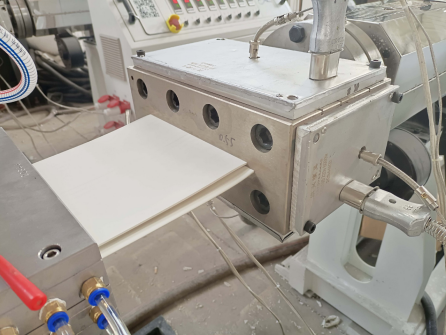

 | 2. Mould (1) Extrusion mould material: 40Cr. (2) Calibration mould material: Wearable tin bronze ZQSn5-2-5. (3) Size: Customized |

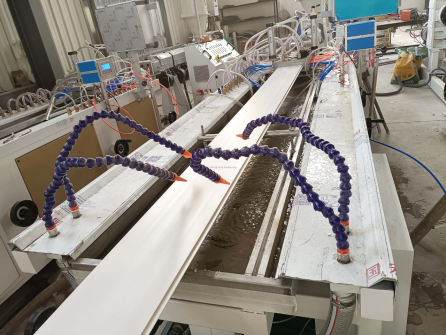

3. Calibrating and water cooling table (1) Vacuum pump power: 3/4/5.5 kw (2) Water pump power: 3/4/5.5kw (3) Dimension(L*W*H): 3000*1000*1100mm |  |

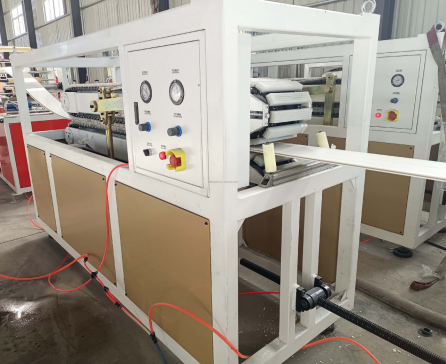

| 4. Haul-off machine (1) Haul-off method: By caterpillars tracks. (2) Haul-off speed: 1-10 m/min. (3) Adopt ABB inverter. (4) Pressing method: Pneumatic pressing. (5) Effective clamping length:1200-2800mm. |

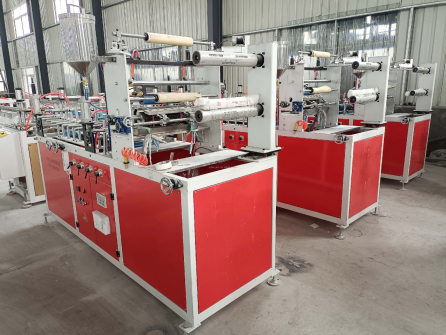

5. Online laminating or stamping machine This machine is special used for wrapping PVC film on the surfaces of PVC panels by cold solvent glue, also transfer printing designs from PET foil onto PVC panel by low temperature. |  |

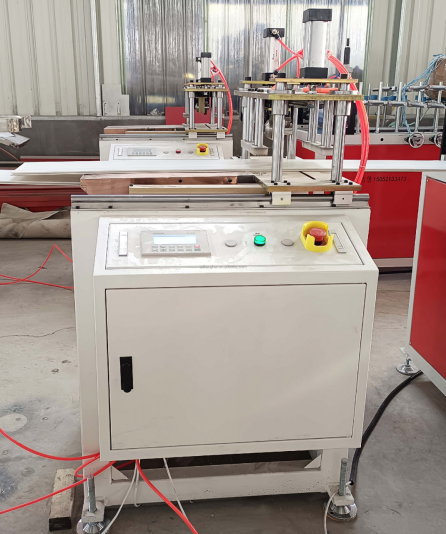

 | 6. Cutting machine (1) Cutting method: Chipless cutting (2) Cutting knife raw material: Alloy steel |
7. Bracket
It is used to hold panels and can unload panels automatically.
(1) Length: 6m
(2) Material: Stainless steel
(3) Unloading method: Pneumatic unloading
