PVC Plastic Mixer China USD 5000 - USD 30000

Zhangjiagang Plummytech is a PVC Plastic Mixer Company and Manufacturer in China

product details

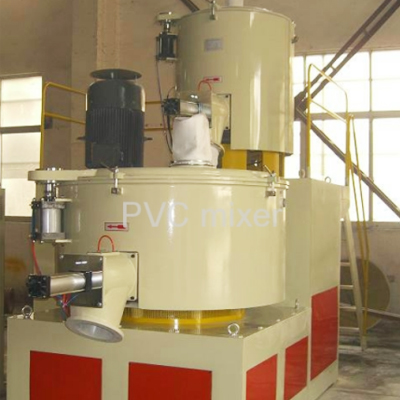

PVC Plastic Mixer Applications:

PVC plastic mixer is used for mixing, stirring, drying and coloring of various resin such as poly, PE, PP, PVC...etc.

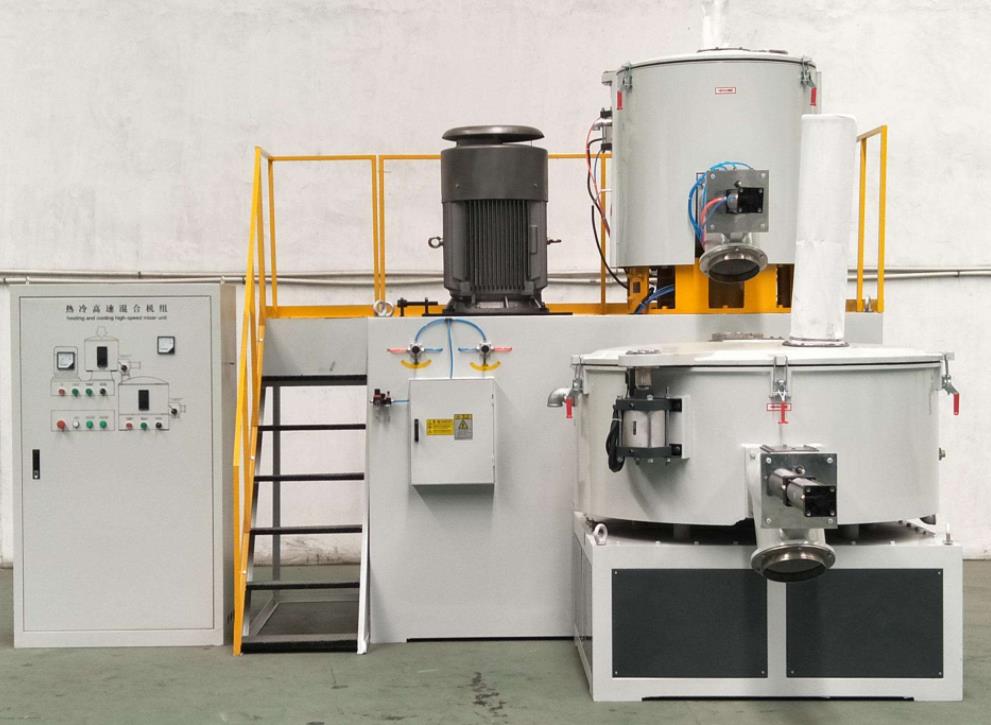

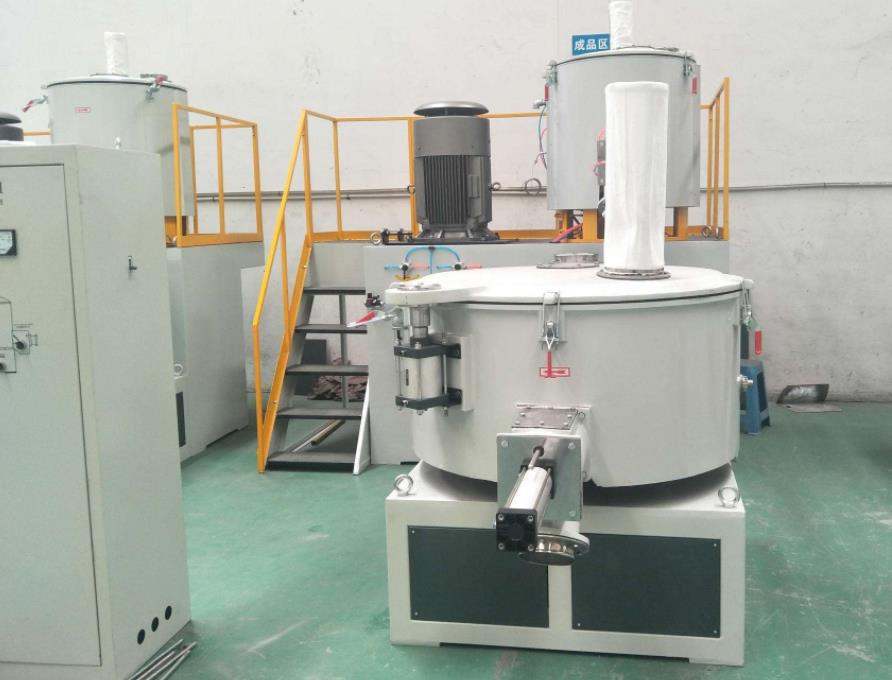

This machine combines hot mixer and cooler mixer together. The material will go into cooler mixer for cooling automatically when they finish heating, exhausts remaining gases and avoids agglomeration. Through setting the time and temperature, the machine can be operated automatically.

PVC Plastic Mixer Features:

1. The barrels and paddles are made of SUS 304, mixing performance, long life, easy to clean.

2. The opening of the lid is controlled by pneumatic and hydraulic systems.

3. Its lid adopt double sealed.

4. The discharging mode adopt the temperature-automatic control and the manual control.

PVC Plastic Mixer Technical Data:

Type	Capacity(L)	Effective Capacity(L)	Blade Speed(rpm)	Motor (KW)	Gases Consumption m³/(min)	Discharge Method	Outlook Size(mm)	Weight (T)	Mixing Time m/p.pot
Heat	Capacity(L)	Effective Capacity(L)	Blade Speed(rpm)	Motor (KW)	Gases Consumption m³/(min)	Discharge Method	Outlook Size(mm)	Weight (T)	Cool
50/100	50/100	32/75	750/1500-1800	7/11-5.5	≤0.3	Manual/automatic	2300/1800/1900	1.8	8-10	6-8
100/200	100/200	75/160	650/1300-180	14/22-7.5	≤0.3	Manual/automatic	2500/2000/2200	2.5	8-10	6-8
200/500	200/500	150/320	475/950-87	30/42-11	≤0.35	Manual/automatic	4580/2240/2470	3.6	8-10	6-8
300/600	300/600	200/360	475/950-87	40/55-11	≤0.35	Manual/automatic	4580/2240/2500	4.5	8-10	6-8
300/1000B	300/1000	200/640	475/950-60	40/55-15	≤0.35	Manual/automatic	4600/3000/4050	4.9	8-10	6-8
500/1000A	500/1000	375/650	430/860-60	55/75-15	≤0.5	Manual/automatic	4600/3000/4050	5.8	8-10	6-8
500/1600B	500/1600	375/1200	430/860-60	55/75-18.5	≤0.5	Manual/automatic	4600/3000/4050	6.5	8-10	6-8
800/1600A	800/1600	600/1024	350/714-60	83/110-18.5	≤0.6	Manual/automatic	6230/4230/4480	8.3	8-12	6-10
800/2500A	800/2500	600/1500	357/714-50	83/110-22	≤0.6	Manual/automatic	4850/3860/6550	8.8	8-12	6-10
1000/3000A	1000/3000	700/1800	325/650-50	110/160-37	≤0.6	Manual/automatic	4930/4150/6850	11.5	8-12	6-10

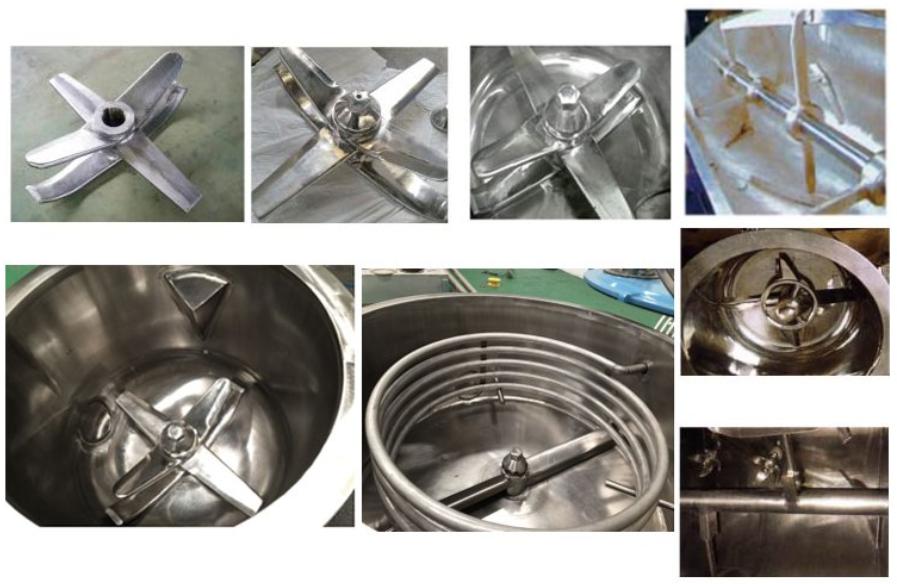

PVC Plastic Mixer Blade:

PVC Plastic Mixer China

PVC Plastic Mixer Projects:

PVC Plastic Mixer China
