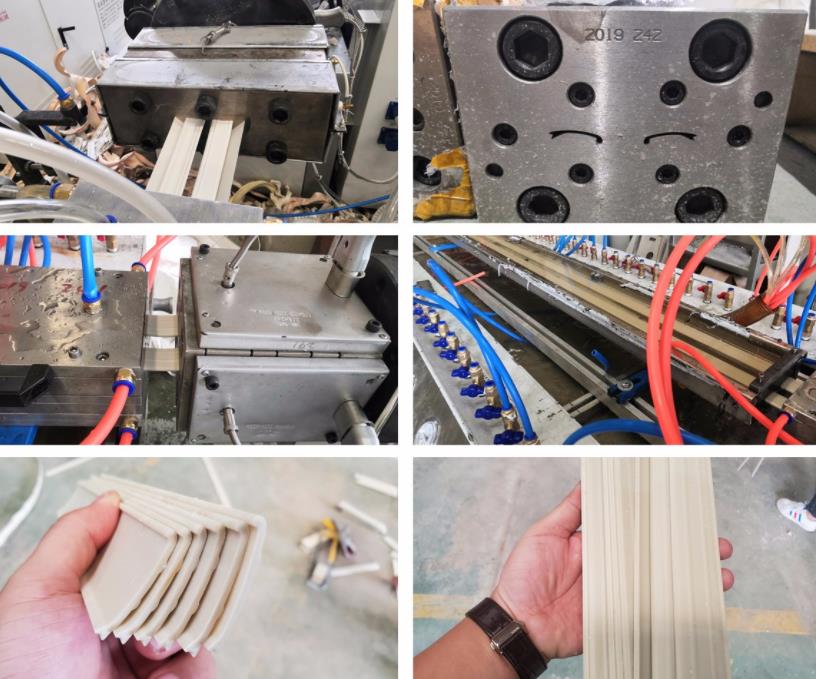

PP/PE Profile Machine Production Process:
Extrusion host-high-precision die head-vacuum shaping cooling water tank-belt tractor-winder or cutting machine
1. The main engine is driven by a high-precision hard tooth surface reducer, the screw barrel is made of high-strength nitrided alloy steel (38CrMoALA) or high-strength quenched alloy steel (9Cr18MoV), and the main engine is driven by an AC frequency conversion controller, no oil stains, and low noise; The temperature controller adopts intelligent temperature control meter, and the temperature control accuracy can reach ±1℃;
2. The main body of the stainless steel cooling water tank adopts imported SUS304 material; the water tank frame adopts a screw lifter device, which can be adjusted in three dimensions up and down, left and right, and the operation is very convenient; equipped with a stainless steel water storage tank, the cooling water can be recycled without splashing the ground;
3. The tractor adopts high-precision ball guide rail guidance system, single-screw center height adjustment, tension and closing adjustment, high wear-resistant surface foamed PU poly-v belt, low inertia poly-v belt wheel, high-efficiency, high-precision worm gear reducer transmission , High-precision frequency conversion motor drive, frequency conversion controller, stepless adjustable traction speed
4. The winding machine adopts Delta frequency converter to adjust the speed to make the production speed reach the ideal state
Applicable materials: PVC, PP, PE, PA, POM, PC, PS, etc.

PP/PE Profile Machine Technical Data:
