PVC Window And Door Profiles Making Machine China USD 35000 - USD 60000

PVC Window And Door Profiles Making Machine,PVC Window And Door Profiles Machine,PVC Window And Door Profiles Extruder Machine,PVC Window And Door Profiles Extruding Machine,PVC Window And Door Profiles Extrusion Machine,PVC Window And Door Profiles Extrusion Line,PVC Window And Door Profiles Production Line,PVC Window And Door Profiles Extruder

product details

1.It is mainly used to produce PVC and PVC window and door profile/frame

2.Product width between 100mm to 600mm.

3.Large output, low noise, PLC control system, over current protective.

4.Famous electrical components: Schneider, ABB, SIEMENS etc.

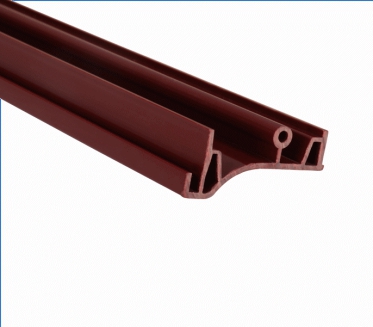

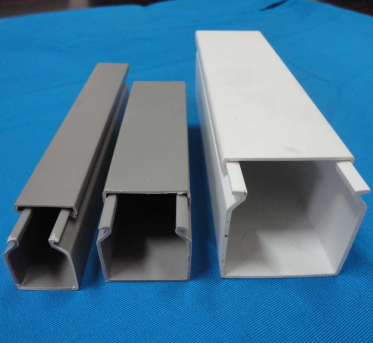

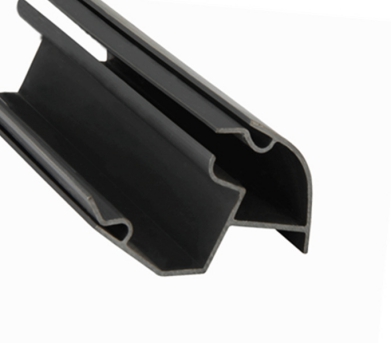

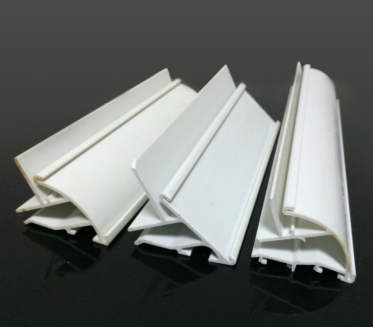

Decorative Effect

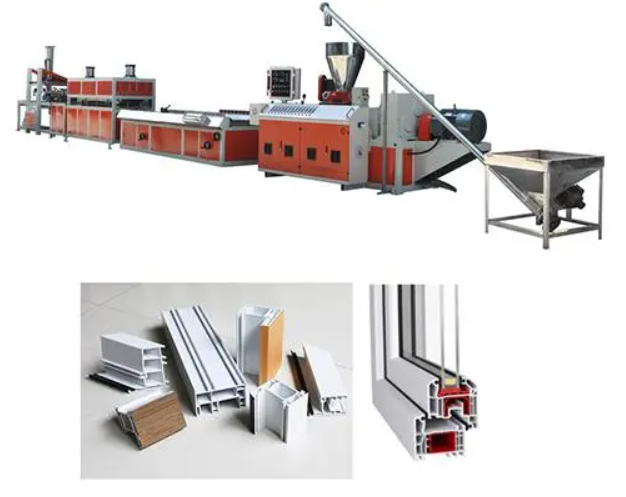

PVC Window And Door Profiles Making Machine China

PVC Window And Door Profiles Making Machine Technical Data:

	Main Extruder	Screw Diameter	Driving Motor Power	Product Width	Output
1	SJZ51	51mm/105mm	18.5 KW	108mm	80-100kg/h
2	SJZ55	55mm/110mm	18.5/22 KW	180mm	100-150kg/h
3	SJZ65	65mm/132mm	37 KW	240-300mm	200-250kg/h
4	SJZ80	80mm/156mm	55/75 KW	400-600mm	350-400kg/h

PVC Window And Door Profiles Making Machine Parts In Details:

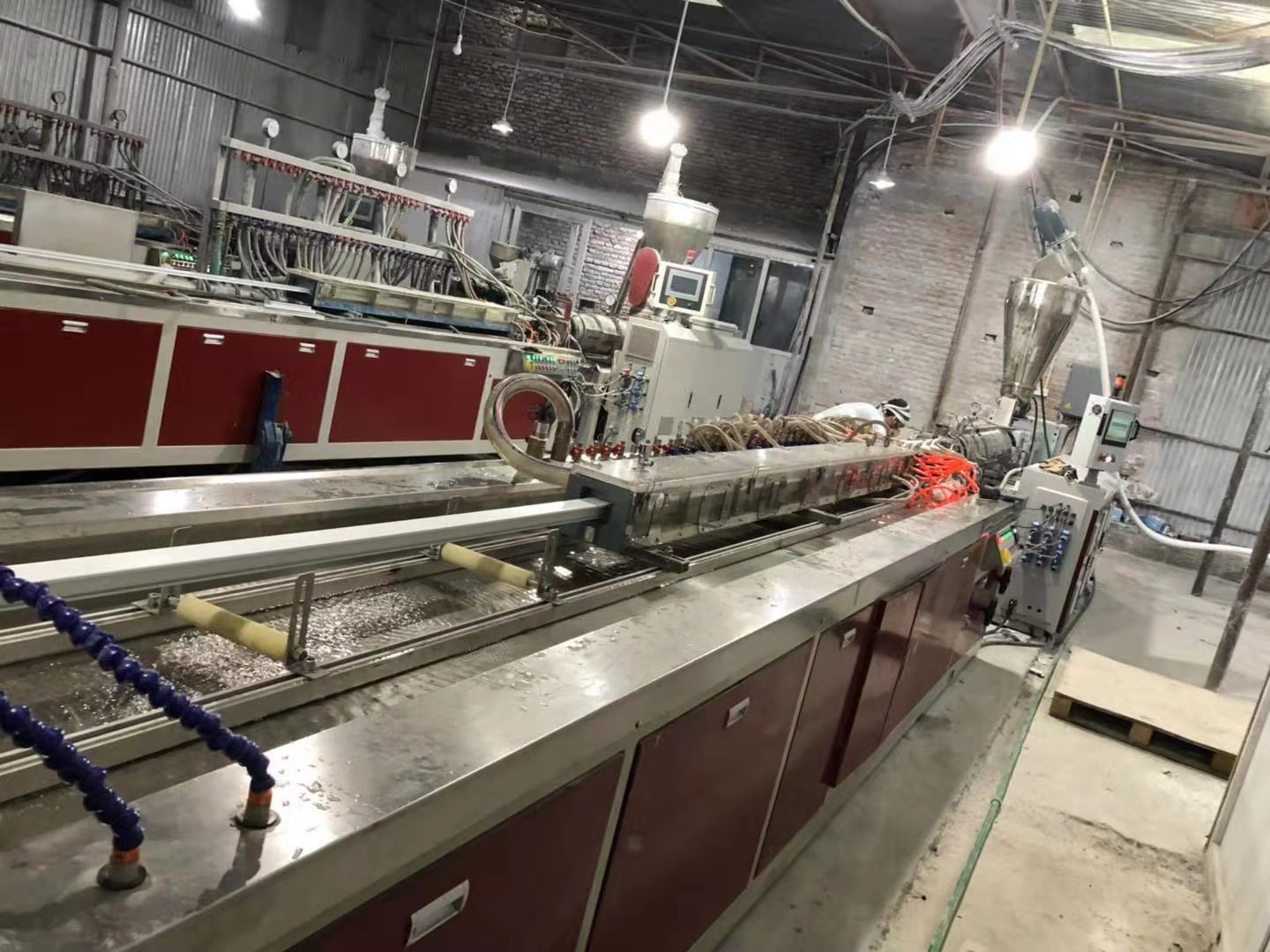

PVC Window And Door Profiles Making Machine China

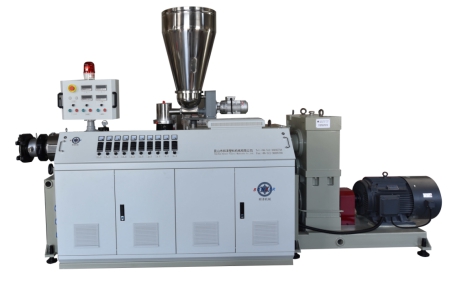

Conical Twin Screw Extruder

1. Generally used for processing of PVC powder, it can produce all kinds of PVC UPVC window profile,door frame.

2. Self-designed bi-metallic screw and barrel. Good plasticization, high capacity, engergy saving and stable operation.

3. The electric cabinet can be made according to customers' requirement.

4. Mechanical and electrical parts adopt German and Japan parts, durable and stable

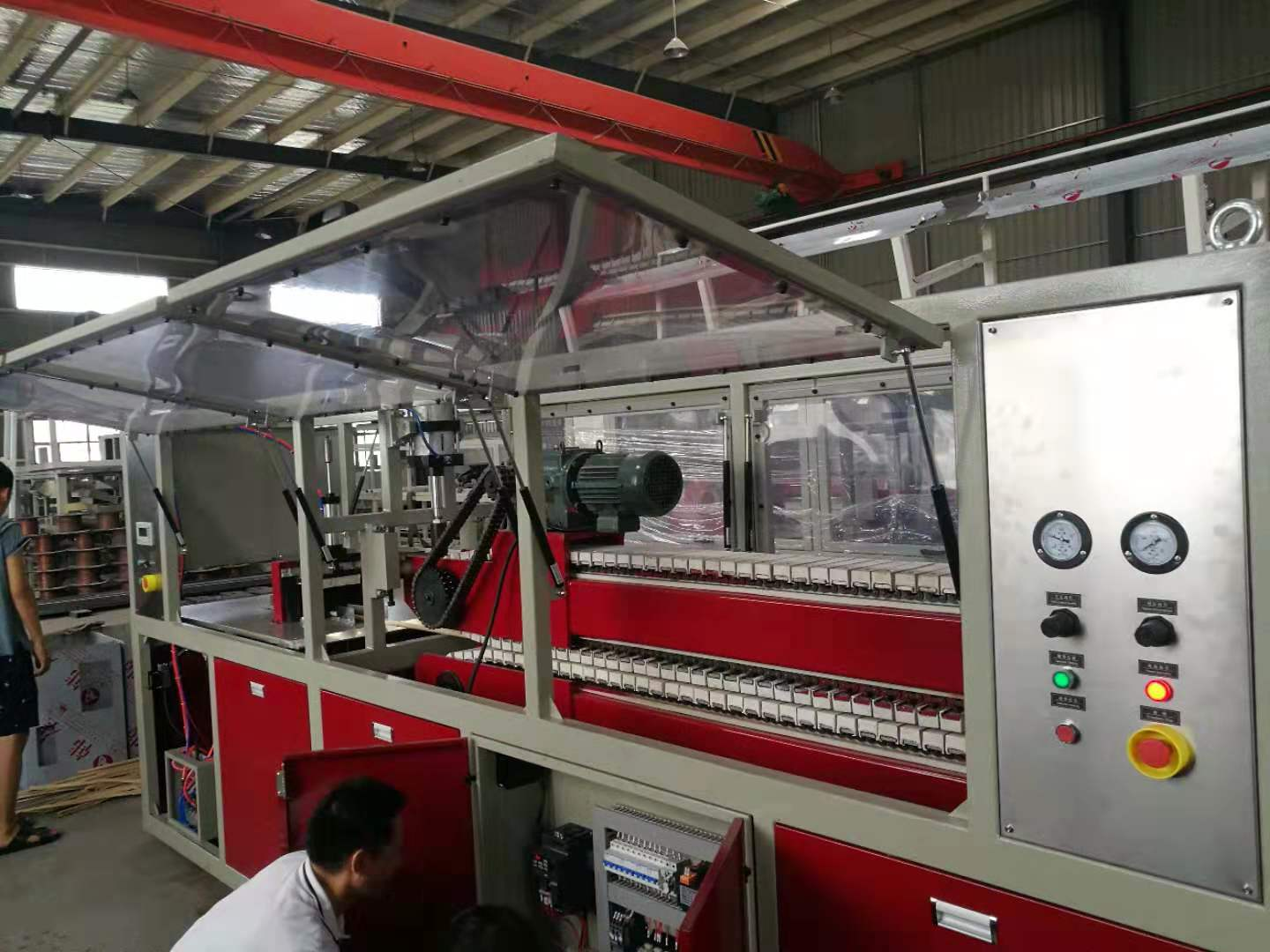

Vacuum Calibration Table

1. After the profile come out of the main extruder, vacuum pumps start, the profile will be calibrated under the pressure difference inside and outside the profile.The the profile would be cooled in water.

2. The guide rail is made of cast aluminum, and the surface is hard anodized or sprayed with silver powder.

3. The working table can move back and forth, left and right.

4. Water proof electric control cabinet and control panel, SEIMENS contactor, CHNT air switch.
