Large Diameter Plastic Pipe Shredder China USD 20000 - USD 80000

Zhangjiagang Plummytech Imp&Exp Co.,Ltd is a company and manufacturer of Large Diameter Plastic Pipe Shredder in China

product details

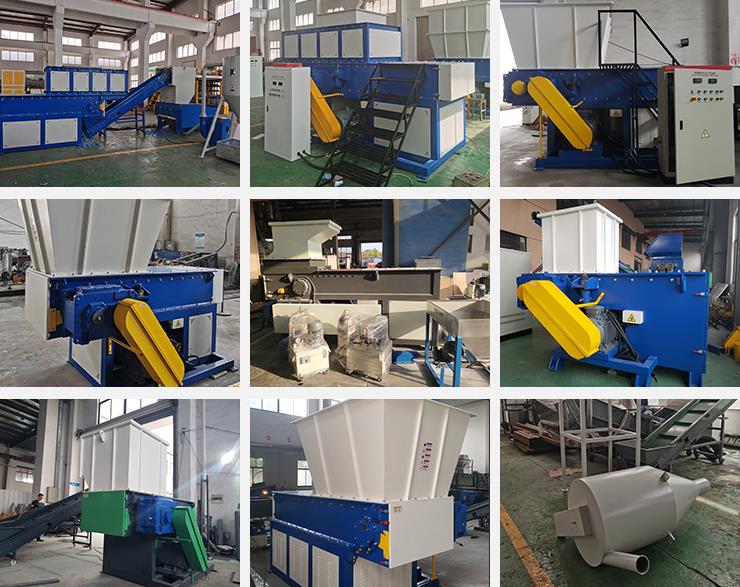

Large Diameter Plastic Pipe Shredder

Large Diameter Plastic Pipe Shredder Technical Data:

Shredder Model	SX-A 600	SX-A 800	SX-A 1000	SX-A 1200	SX-A 1500
Diameter Rotary	255mm	255mm	255mm	300mm	300mm
Rotate the number of knives	26	45	58	71	88
Rotate the cutter shaft speed	82rpm	90rpm	87rpm	87rpm	87rpm
Number of fixed knives	1pcs	2pcs	2pcs	2pcs	2pcs
Hydraulic power	2.2KW	3KW	5.5KW	5.5KW	7.5KW
Working pressure	6-12Mpa	6-12Mpa	6-12Mpa	6-12Mpa	6-12Mpa
Crusher capacity	250-400kg/h	250-450kg/h	300-600kg/h	500-1000kg/h	600-1200kg/h
Feeding caliber	600mm*950mm	800mm*950mm	1000mm*1000mm	1200mm*1100mm	1500mm*1250mm
Host weight	3500kg	4500kg	6000kg	8000kg	9500kg
External dimension	300016002200	330018002400	385020002700	400022002800	450025002800
Maximum outut	650kg/h	900kg/h	1000kg/h	1200kg/h	1500kg/h

Large Diameter Plastic Pipe Shredder Inquiry:

plummytech@yeah.net / louis2008beijing@hotmail.com
