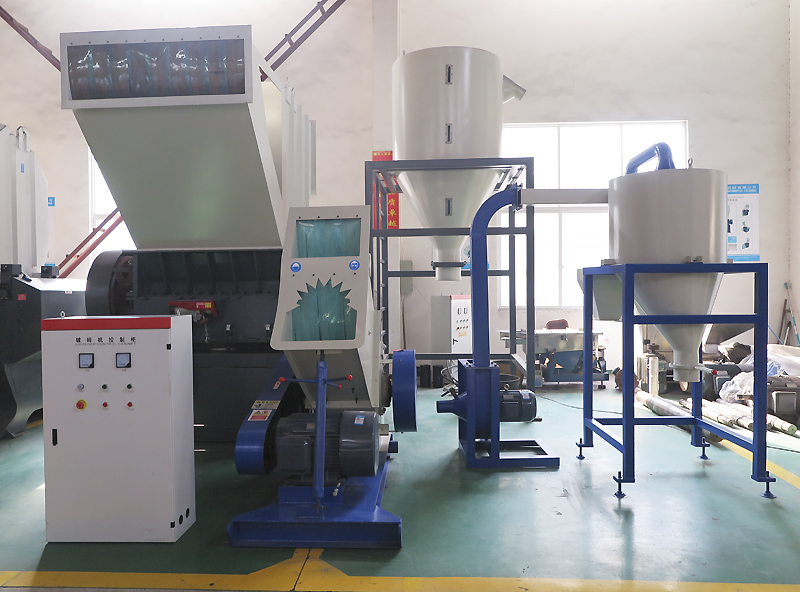

SWP Series Horizontal Plastic Breaking Machine is mainly used for breaking relatively long PVC special shaped material, such as plastic door & window, plastic pipe, sheet, etc. There is no need to cut. Once continuous feeding can be conducted. Internal design of SWP Series Horizontal Plastic Breaking Machine is rather distinct. It is a new kind of breaking machine used for breaking plastic profiled material with large hardness and tenacity. It is improved and extended on the basis of SPW series breaking machine. Automatic feeding can be realized for these two models. Wind motor is arranged for transport of broken material, start-up device is arranged. The operation and maintenance & repair is rather simple. It is an ideal model for breaking all sorts of pipe material and profiled material.
PVC Pipes Profiles Plastic Grinder Main Technical Parameter
| Model | SWP160 | SWP200 | SWP400 | SWP550 | SWP630 | SWP1200 |
| Diameter of Rotating Blade | 160 | 200 | 400 | 550 | 630 | 680 |
| Rotating Blade Quantity | 3 | 3 | 5 | 6 | 9pcs/2units | 30pcs/6units |
| Rotating Speed of Rotating Blade | 500 | 650 | 500 | 500 | 480 | 500 |
| Fixed Blade Quantity | 2 | 2 | 2 | 2 | 4x2 | 6x3 |
| Aperture of Screen | Φ8 | Φ8 | Φ10 | Φ10-Φ14 | Φ10-Φ16 | Φ12-Φ25 |
| Grinding Capacity | 50-100 | 50-120 | 250-300 | 300-500 | 700-850 | 800-1500 |
| Power(kw) | 3 | 4 | 15 | 30 | 37 | 55-75 |
| Power Source | 3P 380V 50Hz | |||||
| Aperture of Feed Inlet(mm) | 200×250 | 240×350 | 375×320 | 420×450 | 820×610 | 1200×720 |
| Total weight (kg) | 280 | 300 | 1200 | 1800 | 3500 | 4800 |
| Outline dimension(mm) | 1000×550×1050 | 1000×590×1090 | 2000×980×1900 | 2250×1100×2400 | 2754×2000×2400 | 3200×2200×3000 |
