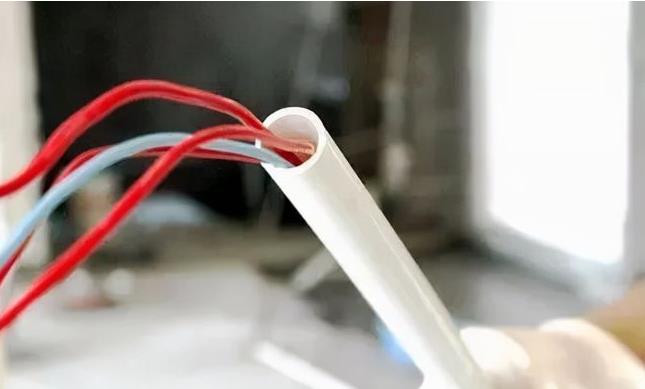

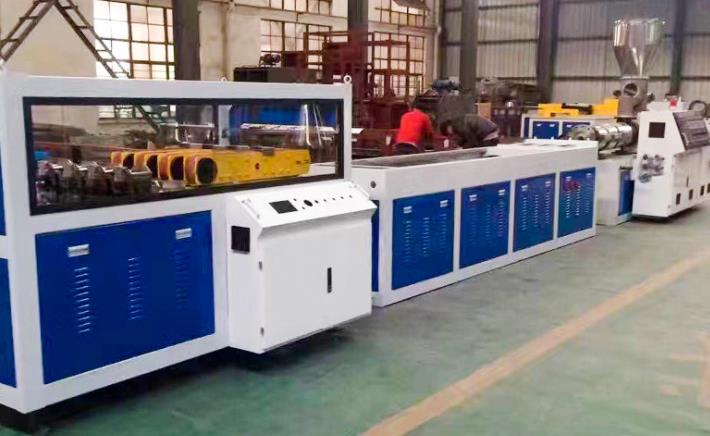

PVC Wire Cable Protection Pipe Making Machine Features:
Complete line solution from A to Z, including raw materials.
Suitable to make U-PVC, C-PVC, M-PVC pipe extrusion, PVC Pipe extrusion line;
Optional to adopt conical twin screw extruder and parallel with twin screw extruder.
Supply formula for the plastic PVC pipe project.
Life long after sale service and technology support.
Pipe Diameter range: 10-800mm.
Best Economic Advise on the extrusion production line to save the production cost.
PVC Wire Cable Protection Pipe Making Machine Technical Parameters:
| Diameter Range(mm) | Extruder Type | Extrusion Power (KW) | Max. Capacity (kg/h) |
| ∅16-63 | SJSZ51/105 | 18.5 AC | 120 |
| ∅16-40 Dual | SJSZ51/105 | 18.5 AC | 120 |
| ∅16-63 Dual | SJSZ65/132 | 37 AC | 250 |
| ∅16-40 Four | SJSZ65/132 | 37 AC | 250 |
| ∅32-110 | SJSZ65/132 | 37 AC | 250 |
| ∅63-200 | SJSZ65/132 | 37 AC | 250 |
| ∅63-110 Dual | SJSZ80/156 | 55 AC | 450 |
