MPP Cable Protection Pipe Machine Brief Descriptions:
1. The extrusion line is equipped with two extruders, multi-layers co-extrusion, stable extruded materials and excellent
plasticization.
2. The imported proportional control valve regulates the forming air pressure, which is stable and reliable.
3.Double channel spiral composite extrusion die, and the die surface is nitrided and polished.
4. Double layer wall thickness adjusting device.
5. The pipe is online double-layer socket flared.
6. The horizontal, horizontal and vertical directions of the workbench are three-dimensional adjustable.
7. When the workbench is powered off, it will automatically exit the protection system.
8. The module is made of special aluminum alloy, which has the characteristics of light weight, high strength, good wear
resistance and small coefficient of thermal expansion.
9. The molding module is air-cooled and water-cooled, with good coolingeffect and fast molding speed.
10. The whole production line adopts PLC microcomputer control system to visually display melt temperature, pressure, forming speed, fault alarm, etc.
11. High efficiency single screw extruder (using pellets) and energy-saving twin screw extruder (using powder or pellets) are available.
MPP Cable Protection Pipe Machine Parts List:

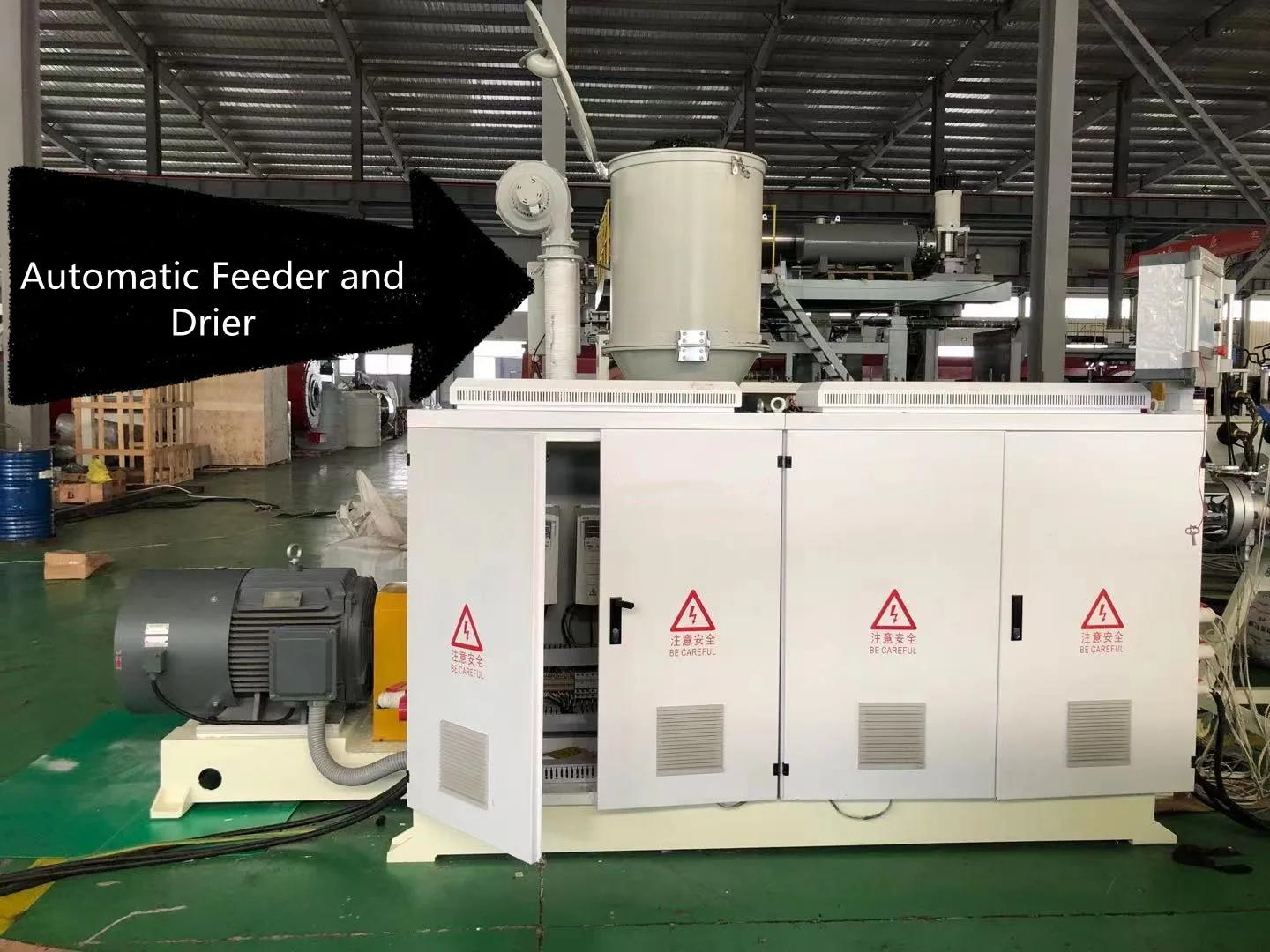

Automatic Feeder and Drier | 1set |

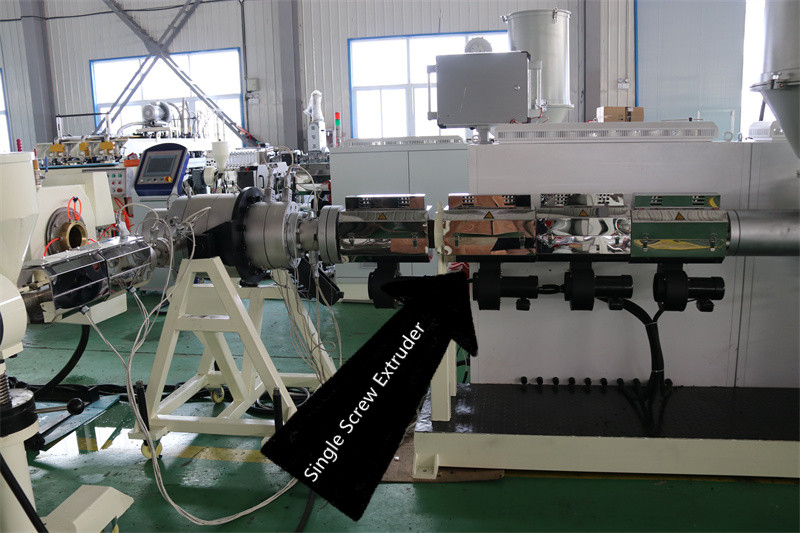

Single screw extruder | 1set |

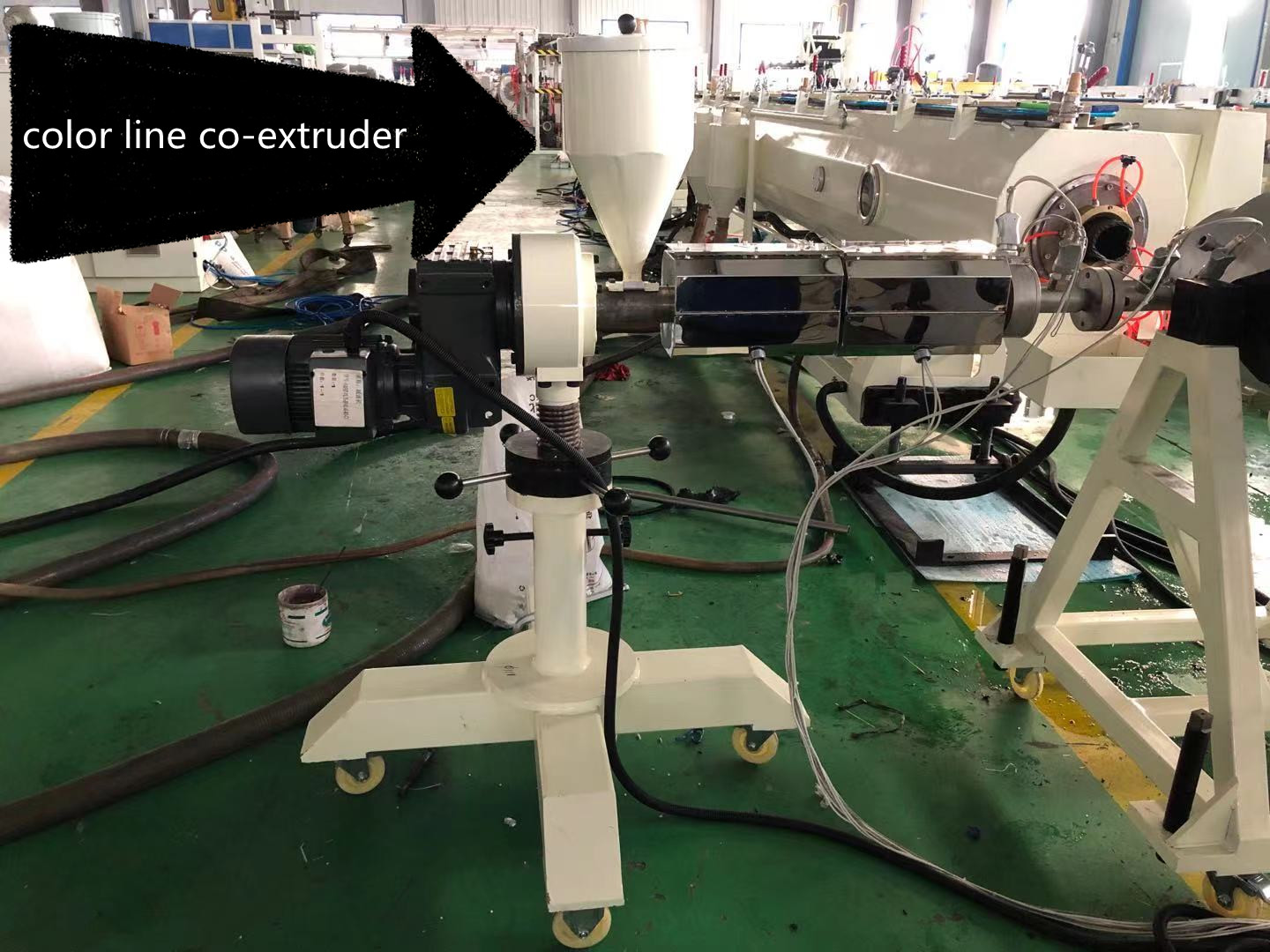

Color Line Co-Extruder | 1set |

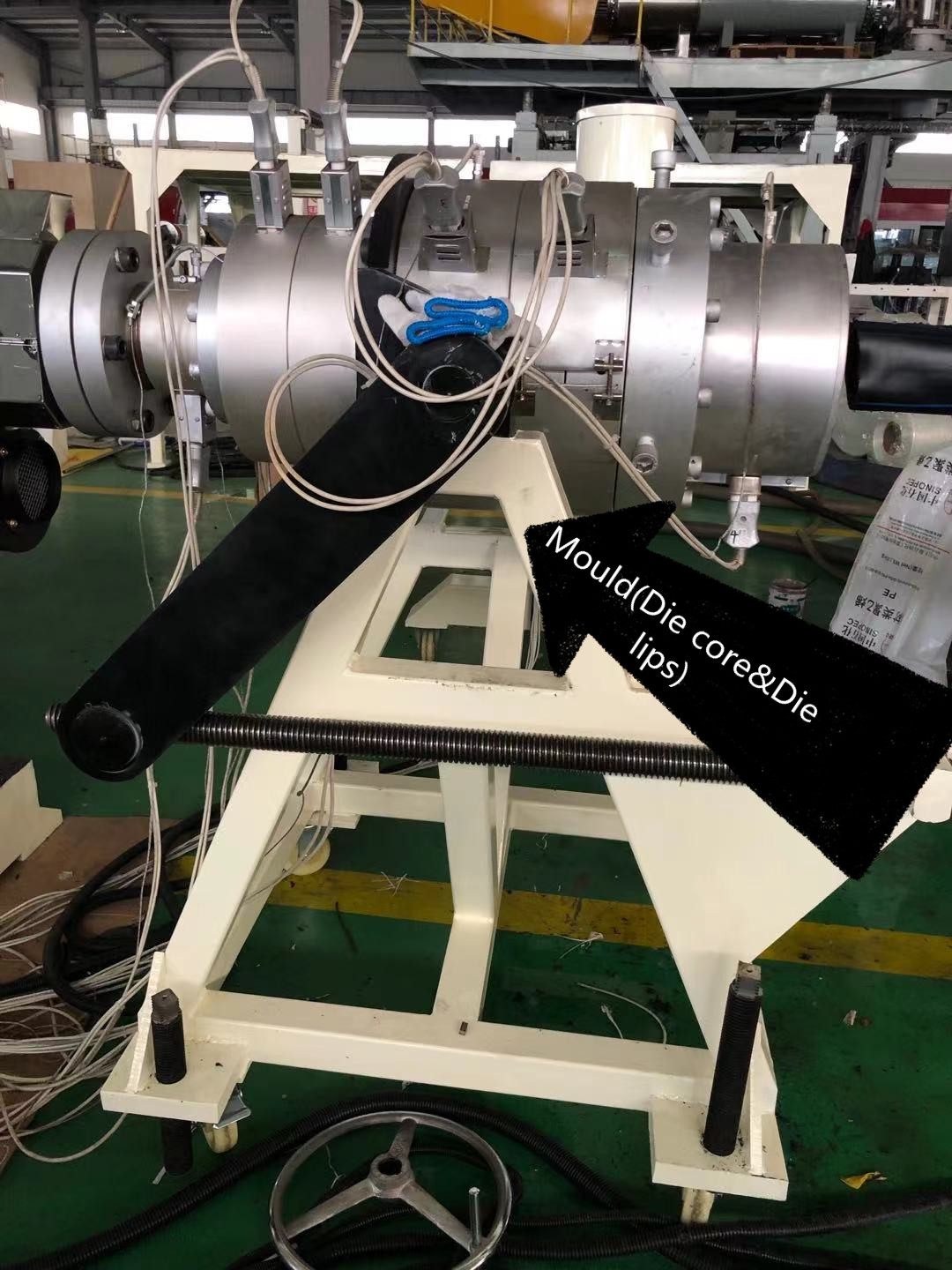

Mould | 1set |
Die Core & Die Lips | According customer requirement |

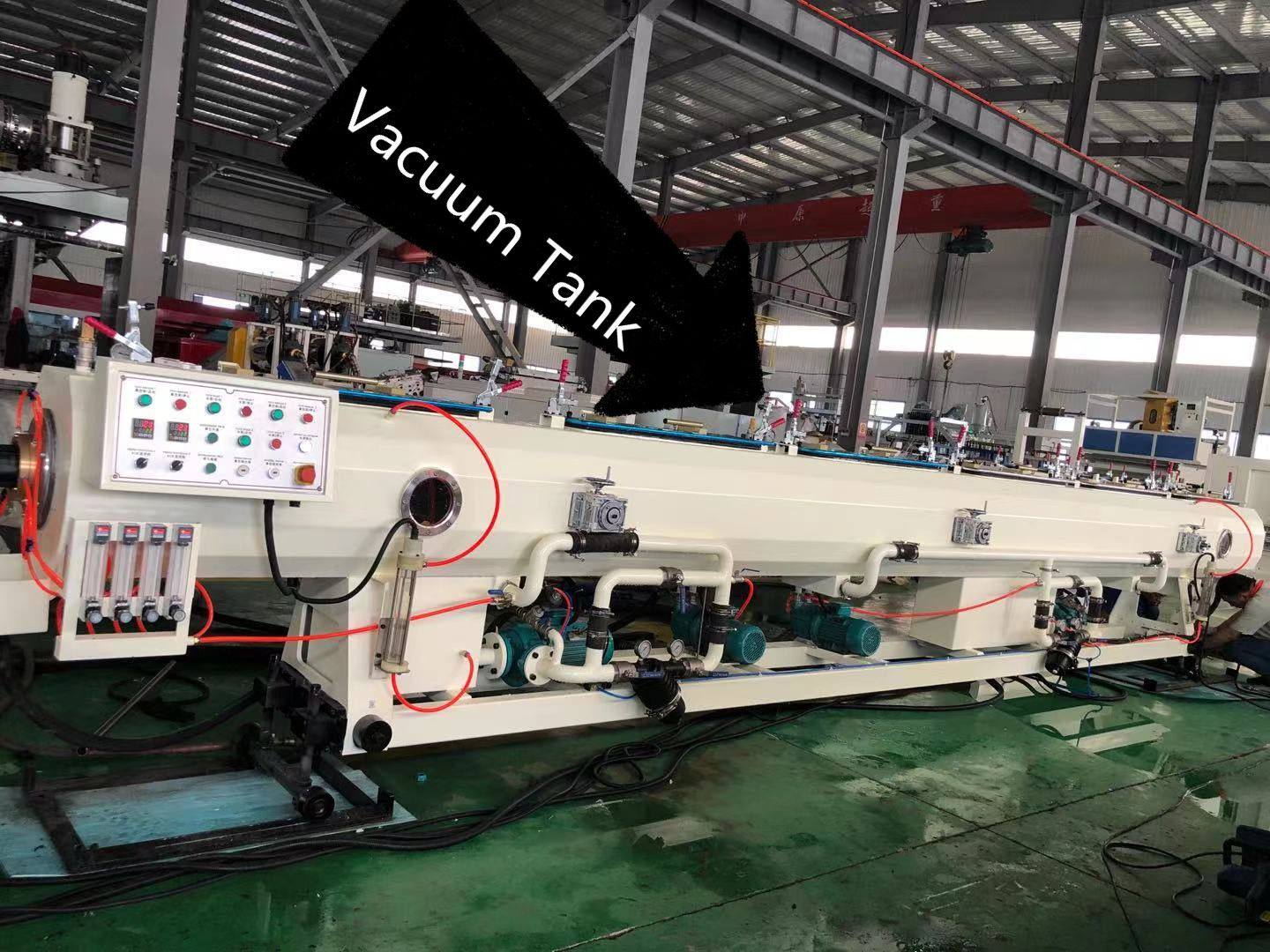

Vacuum calibration & cooling tank | 1set |

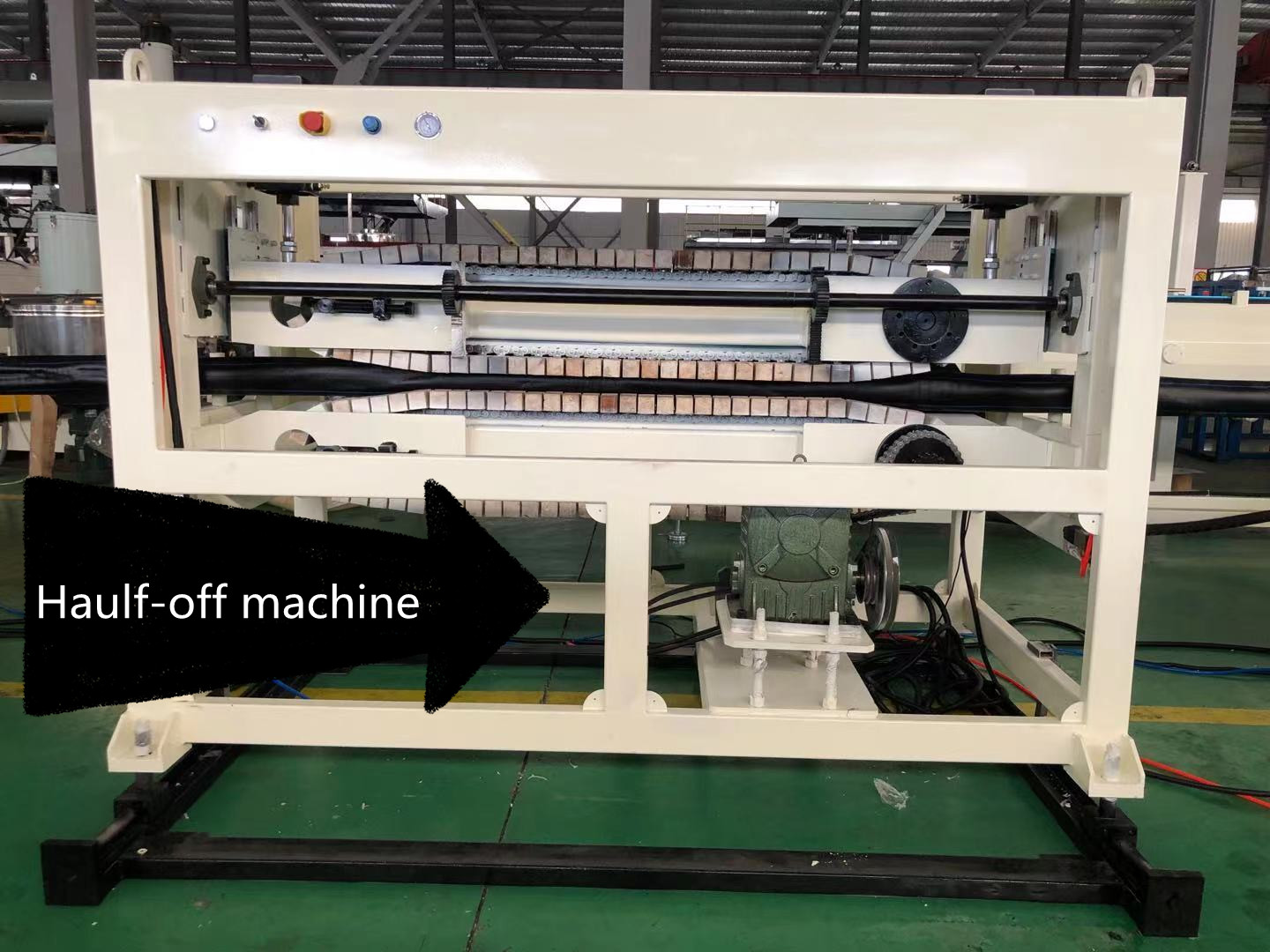

Haul-off machine | 1set |

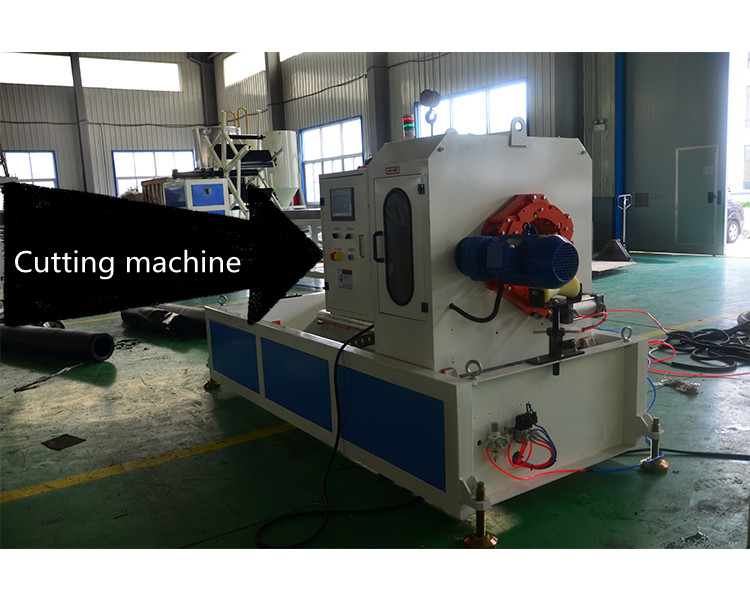

Automatic cutting machine | 1set |
Stacker | 1set |
Plastic crusher | 1set |
MPP Cable Protection Pipe Machine Technical Data:
Model | Pipe Range(mm) | Extruder Model | Main Motor | Max Capacity(pcs) |
SJ-63 | 16-63 | SJ-60/38 | 110KW | 400 |
SJ-110 | 20-110 | SJ-60/38 | 110KW | 400 |
SJ-160 | 40-160 | SJ-60/38 | 110KW | 400 |
SJ-250 | 50-250 | SJ-75/38 | 160KW | 600 |
SJ-400 | 160-450 | SJ-90/38 | 220KW | 1000 |
SJ-630 | 250-630 | SJ-120/38 | 280KW | 1000 |
SJ-800 | 315-800 | SJ-120/38 | 315KW | 1200 |
SJ-1200 | 500-1200 | SJ-120/38 | 355KW | 1200 |
SJ-1600 | 1000-1600 | SJ-90/38+SJ-90/38 | 250KW+250KW | 2000 |

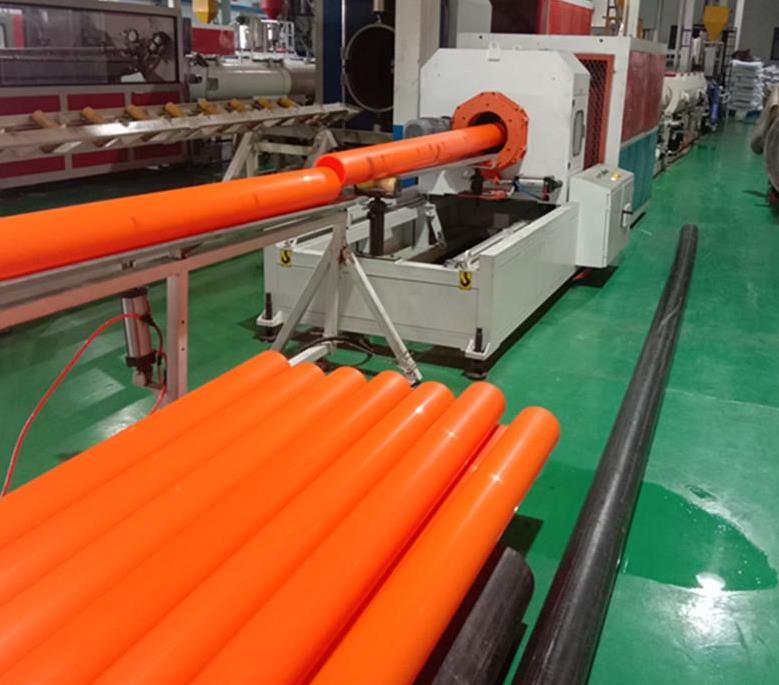

MPP Cable Protection Pipe Machine Pictures:
