PE Drip Irrigation Pipe Making Machine Technical parameter:
| Model | Pipe diameter | Pipe thickness | Highest speed | Distance of dripper |
| XDC-DGG 300B | Φ12-16-20-22-25mm | 0.12-0.6mm
0.2-1.0mm(optional) | 320m/min | 100,150,200,300,400,500-1500mm |
| Space 100mm | Line speed 300m/min |
| Space 200mm & Space 300mm | Line speed 320m/min |
| Model | Pipe diameter | Pipe thickness | Highest speed | Distance of dripper |
| XDC-DGG 300A | Φ12-16-20-22-25mm | 0.12-0.6mm
0.2-1.0mm(optional) | 300m/min | 100,150,200,300,400,500-1500mm |
| Space 100mm | Line speed 200m/min |
| Space 200mm & Space 300mm | Line speed 300m/min |
PE Drip Irrigation Pipe Making Machine description:

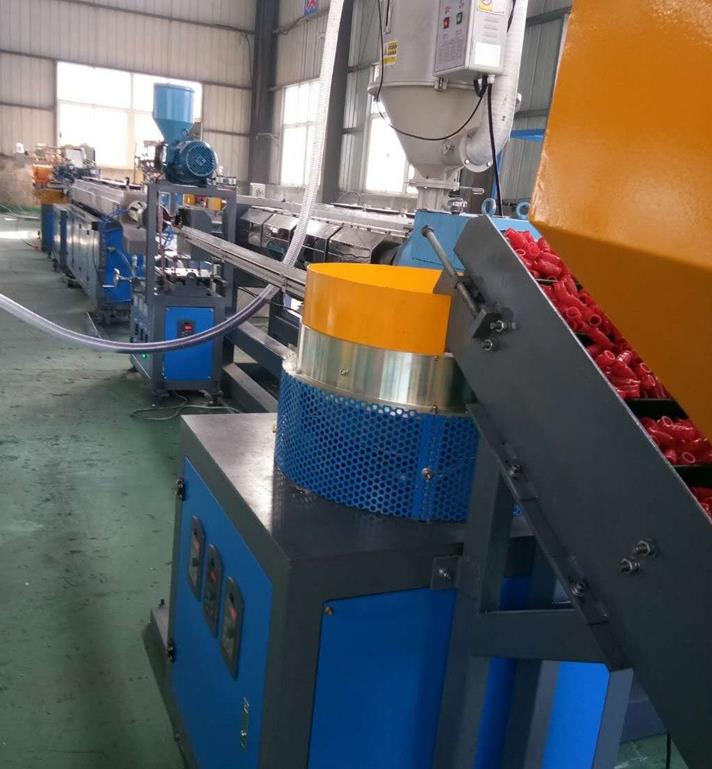

1. Dripper feeder device: double sets. Dripper feeding speed: 3000pcs/min.
2. Have dripper buffer device, make sure non-stop machinery even if happen bad quality dripper block on feeder.
3. Extruder: Servo direct drive, save power.
4. Extruder die head & calibrating: Germany technology, thickness adjustable.
5. Configuration: One-button automatic pipe-holding dripper insert device.
6. Irrigation pipe accumulator: equipped with the most advanced European parallel accumulator device.
7. Automatic drilling device: 3 units. speed: 3000times/min.
8. Configure online automatic imaging analysis and monitoring punching system: monitor the punching status, realize the error automatic alarm function, and ensure the product punching rate.
9. Line speed: 320m/min, it is the fastest production efficiency in the world.
Feature 1:
Zeanon irrigation pipe weights less than 7g/m,Reduce 30% material which will largely save cost.
Feature 2:
• Configured with advanced dripper buffer and insertion unit (Europe technology)
• Insert 3000 pieces of dripper per minute.
Feature 3:

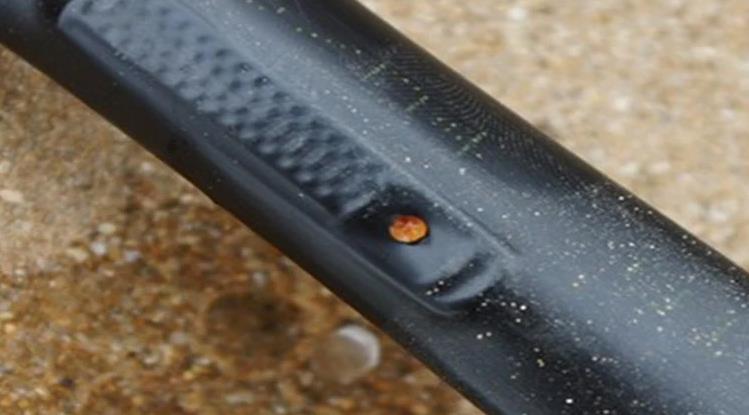

• Advanced dripper,weights only 0.1g/pcs(China exclusive agent).
• High efficient inner irrigation pipe dripper adopted high efficient injection mold technology.
• All produced in Europe, to make sure of the quality.
Feature 4:
• Double Auto Punching Unit(3 unit)--leading technology in the world;
• Punching device fixed with online monitor & picture indentify system, store the punching system;
• Auto alarm for wrong punching, it is controlled by PLC system;
• Tracking and adjust the punching system in time.
Feature 5:

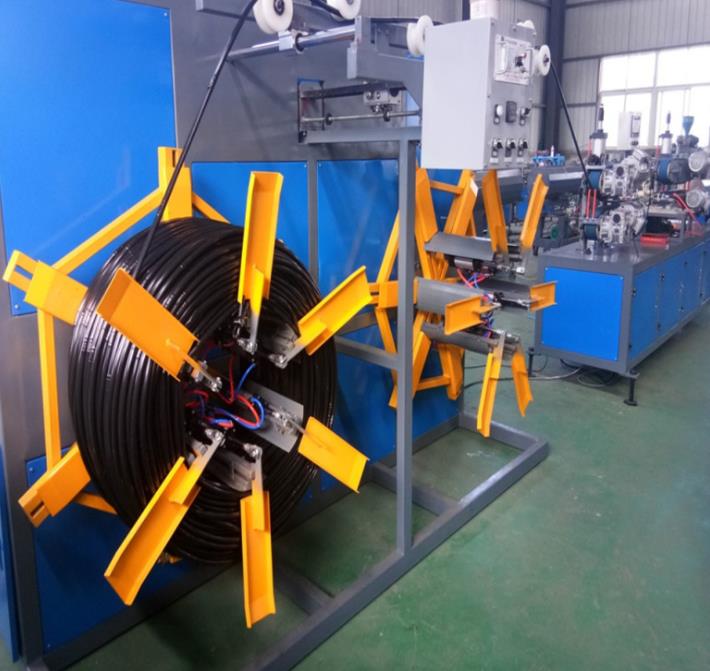

• Auto winder + Accumulator device
• This is an important part of the drip irrigation pipe machine.
• It is drived by servo motor.
• Automatically wind the dripper irrigation pipe.
• Controlled by PLC system.

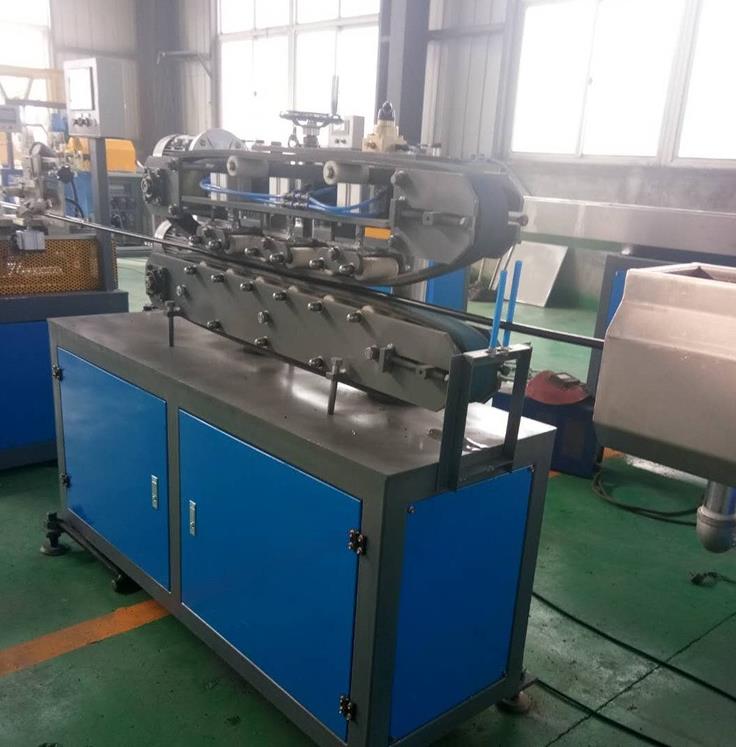

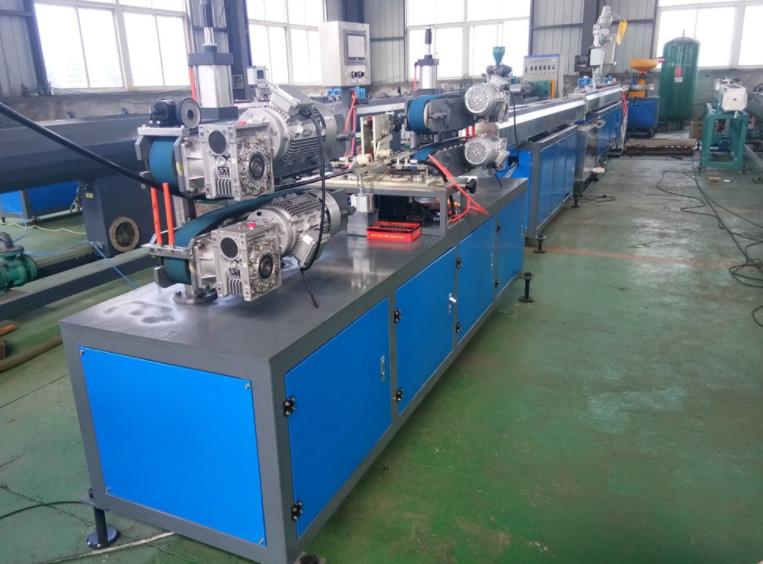

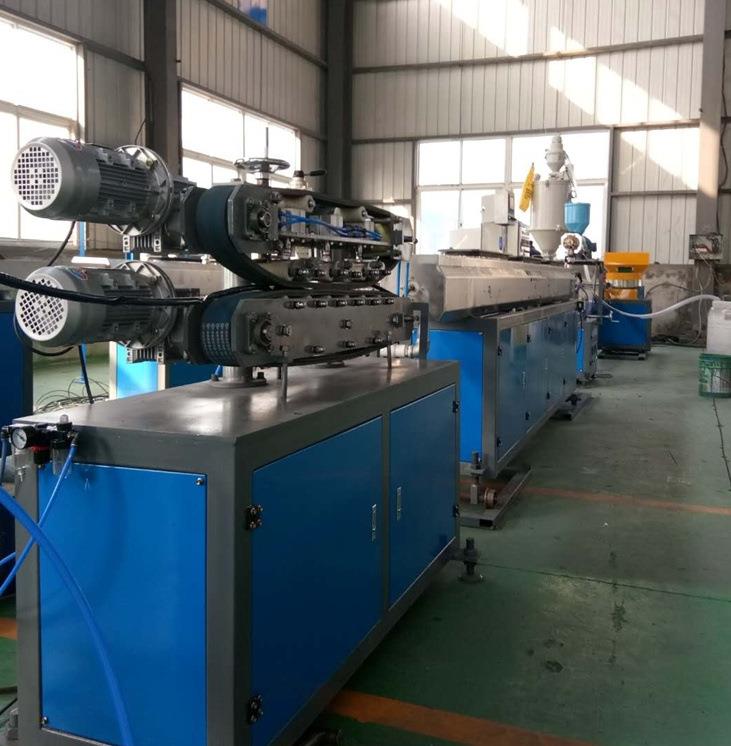

PE Drip Irrigation Pipe Making Machine Pictures:
