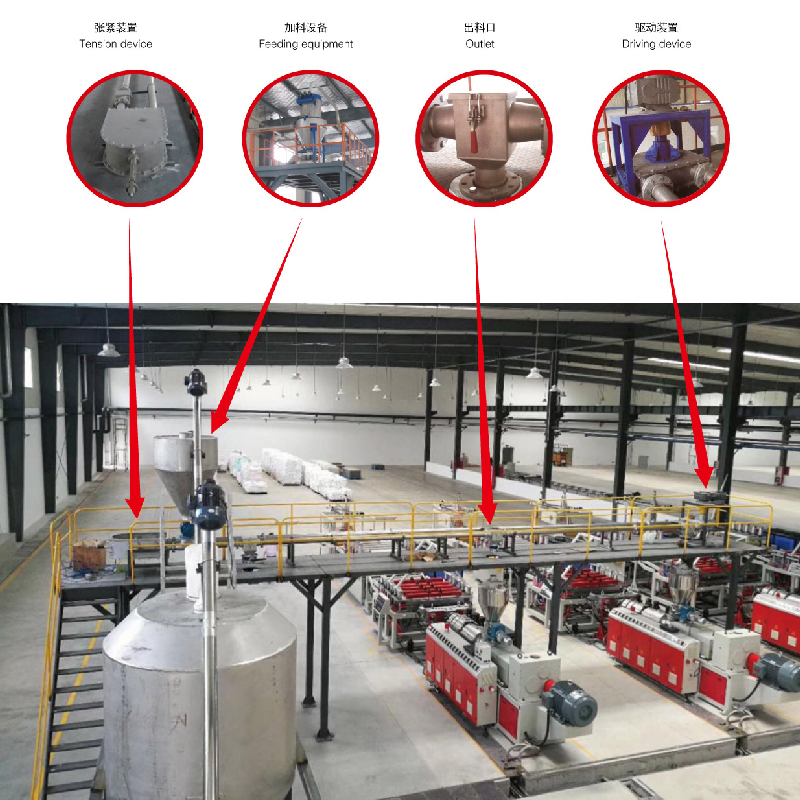

Plastic Powder Tube Chain Conveyor Working Principle：

Tube Chain conveyors is a new type of continuous mechanical conveyor， it is suitable for transportation ofbulk solid material.Bulk solid material is conveyed in the tube by disks fixed on the chain in a de nitedistance.Compared with traditional mechanical conveyors such as screw conveyors， belt conveyors， TCC with advantage of lower power consumption， high e ficiency， three dimension orientation ect.

Application fields of tube chain conveying system：

PlasticIndustry：PVC、PP、PE Powder， ABS、PC、PP、PE Granules.

Industry of Chemicals：Dye， paints， coating， carbon black， titanium pigment ferric oxide， ceramics powder， coarse whiting， fine partic ale calcium carbonate，bentonite， molecular sieve， kaolin， silica flower， active carbon and etc.

Mineral Industry：Urea， ammonium chloride， ammonium bicarbonate， soda power， solid pesticide， tungsten powder， fish oil， copper fine ore powder， coal powder， rock phosphate， alumina powder and etc.

Bud ing Material：Cement clay， yellows and， quartz sand， clay powder， silica， limestone flour dolomite ines， Woodchips， fiberglass， sl icon dioxide， French chalk and etc.

Foodstuff Industry：Flour， starch， grain， mik powder， food add ive and etc.

Plastic Powder Tube Chain Conveyor Features：

Compact size， sma ll space required， could change conveying direction at horizontal，ertica land inclined orientation.

Dust， gas and pressure-tightness is easy to realize， Therefore no product contamination and dust free operation is possible.

Smooth moving， lower internal fraction of part cles， lower damage to material and suitable for abrasive material.

No tube blocking happens， large range material are suitable

No segregation happens for mixed material

High capacity and lower power consumption makes a lower operation cost

All moving parts working in tube， high safety and high reliablity

Easily for longdistance transportation.

Multiple material inlet and outlet is possible to meet different process

Easy to be integrated to an industrial plant for automatic working

Plastic Powder Tube Chain Conveyor Working condition：

Pressure：1Mpa Absolute

Temperature：-20℃to 200C

Material：

Tube、housing、Chain、So rocket：SS 304 ，Disk：Nylon，

(no material contact) ：Carbon steel painted

Plastic Powder Tube Chain Conveyor  Technical Parameter：
